ProNav Universal Trolling Motor Wiring Kit (12-36V)

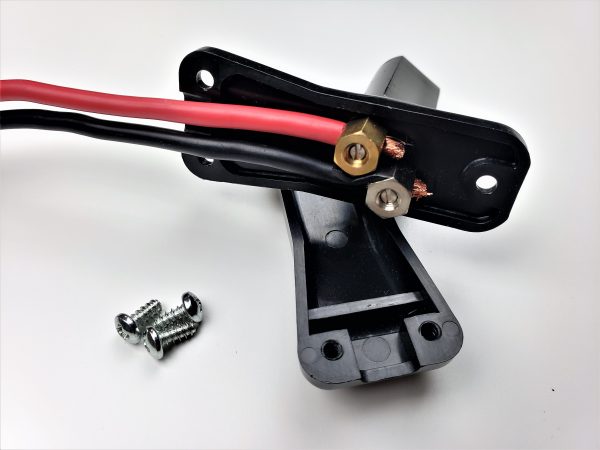

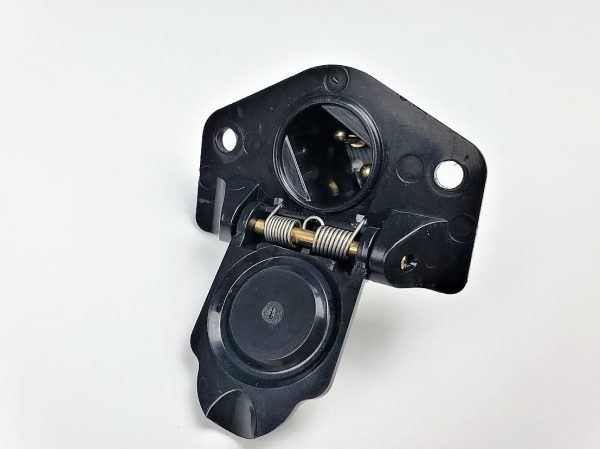

Hit the easy button and check out ProNav’s new universal trolling motor wiring kit, complete with everything you’ll need to do your own professional quality wiring job between your trolling motor and batteries. Kit includes a marine quick disconnect plug, heavy gauge wires with sealed terminal ends, a waterproof resettable fuse, and mounting hardware.

***Pictured tools are not included, provided for reference only to illustrate required tools for installation.***


Size: Our standard length wires (for cable routings less than 12′) are typically used for battery installations in the bow of the boat. If your batteries are located behind the console of your boat or require longer routings (up to 25′), choose the extended wire length option.

Volts: Our kit comes in a 12, 24, and 36 volt configuration. The 12 and 24 volt configurations include 8 gauge copper marine wire, suitable for most applications. The 36 volt configuration includes 4 gauge copper marine wire, suitable for extreme duty applications, longer wire routings, and larger trolling motor installations. The 24 and 36 volt configurations also include additional jumper cable(s) to wire your batteries in series.

Wiring Kit Overview:


Installation Instructions:
